Copper Clad Laminate(CCL) is a type of basic material of PCB, it is laminated with copper clad on both sides, and reinforced with resin soaked glass fiber fabric.
When designing PCB circuits at microwave frequencies, the key characteristics that define circuit laminate performance for microwave/RF printed-circuit boards (PCBs) include dielectric constant(Dk), dissipation factor (Df), coefficient of thermal expansion (CTE), thermal coefficient of dielectric constant (TCDk), and thermal conductivity.
The high-frequency material perhaps most familiar to users of PCB laminate is polytetrafluoroethylene (PTFE) which is a synthetic thermoplastic fluoropolymer that has excellent dielectric properties at microwave frequencies. Jiu Yao’s FJY—A series is a special laminate made of PTFE resin and reinforced with fiber glass for RF/Microwave application. Below are typical RF/Microwave Copper Clad Laminate (CCL) material from Jiu Yao and our competitor.
————————————————————————————————————————————————————-
Rogers Advanced Materials for RF/Microwave Designs
In 1949, Rogers introduced the first RT/duroid® material for electronic applications and today the RT/duroid® family of high frequency PTFE laminates is widely used in the industry for high speed RF/microwave PCB designs.

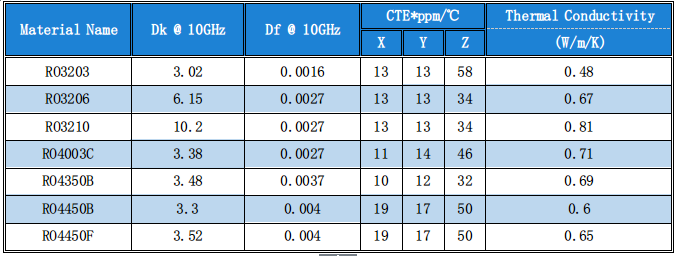

A partial list of the most common Rogers PCB laminates for RF/microwave boards please see below:
————————————————————————————————————————————————————-
Arlon Electronic PCB Materials
While Arlon was purchased by Rogers Corporation, Arlon Electronic Materials specializes in thermoset resin technology including polyimide, high Tg epoxy and low loss thermoset laminate systems. Applications that encounter significant exposure to high temperatures such as aircraft instrumentation, down-hole drilling and RF antenna applications are typically good candidates for Arlon materials.

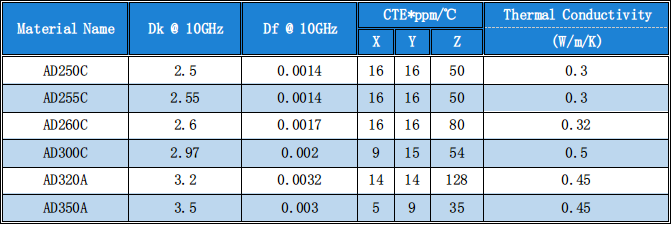

See below for a partial list of their laminates used in RF/microwave applications:
————————————————————————————————————————————————————-
Taconic Advanced Dielectric Materials

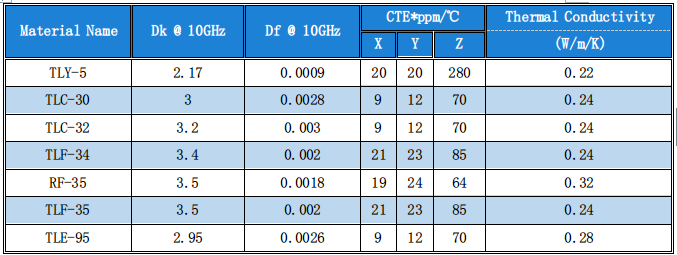

Taconic has been a world leader in the PTFE products since 1961. Today they provide PTFE and silicone coated fabrics, tapes, and laminates for a range of high performance applications. Thermally stable, low Dk, low Z axis CTE PTFE laminates are the focus for the Taconic materials used in the manufacturing of RF/microwave PCBs. Taconic has materials for many application and a partial list of their offering please see below:
————————————————————————————————————————————————————-
Jiu Yao’s PTFE Laminate for RF/Microwave Designs
Jiu Yao’s FJY—A series are special laminates made of PTFE resin and reinforced with fiber glass for RF/Microwave application. Our laminate are with excellent electric and PIM characteristics, low loss and low coefficient of thermal expansion, favorable mechanical and size stability, which become very competitive high frequency PCB base material in the market. To ensure our advanced position in the market, we had set up R&D center in Israel and Jiangsu University. Our aim is to be the leading RF & Microwave PCB laminate supplier in China.
FJY—A series laminate thickness 0.254-10.0mm, Dk 2.17-3.5, standard size including 36×48、24×36、18×24、12×18 inch, standard copper clad both sides 1/2, 1 or 2 ounce, thickness/size/copper clad can be customized, we welcome your inquiry.

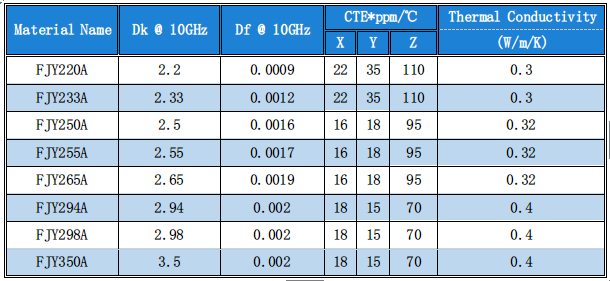

Below are some of our typical laminates for your reference:
You can download the pdf file from blow material name:
FJY220A FJY233A FJY250A FJY255A FJY265A FJY294A FJY298A FJY350A
Want know our customizable high-frequency PCB solutions? Can’t determine which PCB material is the best choice for your project? Your advanced circuit board project requires specifications which are not listed in the above table? You can also reach our technician by info@ptfe-pcb-laminate.com
